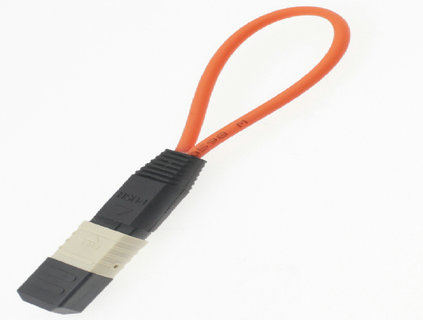

MPO/MTP Loopback Assemblies
Overview:
MPO / MTP Loopback Assemblies are designed for testing of MPO parallel links and for device burn-in. By creating a loop of signal from transceiver to receiver within one MPO plug it forms optical link which allows testing of optical network segment by segment. They provide an effective way of testing the transmission capability and receiver sensitivity of network equipment.
Features:
Available in all forms of MTRJ, 8 / 12F MPO, and 24F Loopback.
Customized loop length and polarity.
Available in multi-module and single-module.
Applications:
For equipment self-testing and engineering
Network diagnosing and testing
Storage Area Network
Performance:
Insertion Loss: < 0.70dB
Operating Temperature: -40 to + 80°
