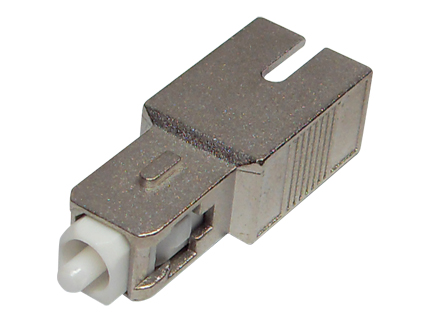

SC female-male attenuator


The Variable attenuator can be installed at the distribution panels or connecting two patch cords to become in-
line attenuator application. By fine tuning the air gap width, the user can easily adjust the attenuation value by hand
when using in conjunction with power meter.



Type

Attenuation

Values (dB)

Precision error (dB)

Wavelength

Additional Loss (dB)

Connector type (dB)





High

Return

Loss







1-30dB

1~5dB<±0.1dB



1310nm

Insertion Loss

FC/UPC

1550nm

≤0.2dB(UPC)

FC/APC

1310nm/1550nm

≤0.3dB(APC)

SC/UPC,LC/APC



Return Loss:



5~10dB<±0.3dB



≥50dB(UPC)

LC/UPC,LC/APC

10~20dB<±0.5dB



≥65dB(APC)

ST/UPC,MU/PC
